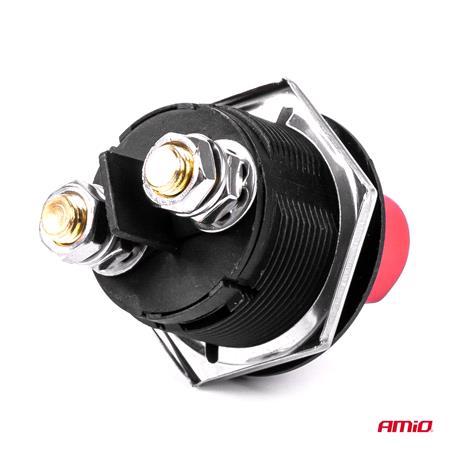

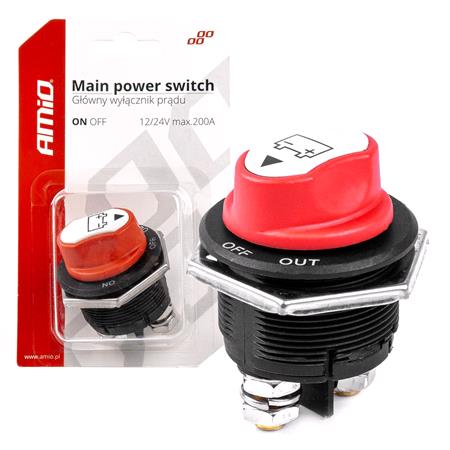

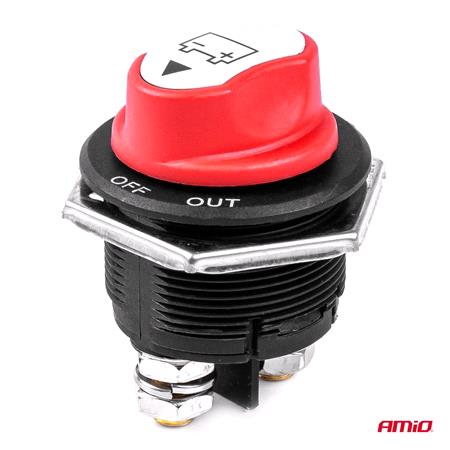

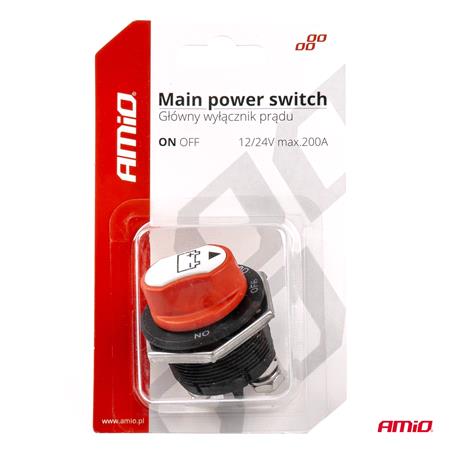

Main power switch 12/32V max 200A peak 1000A
BATTERY CUT-OFF SWITCH HEBEL
-WORKING CURRENT 200A
-PEAK CURRENT 1000A
HEBEL RIGGEL 3-position universal built-in ON-OFF-OUT
-Mounting diameter: 38 mm
-Outside diameter: 45 mm
-Total height: 61 mm
-Height when mounted: 20mm
-Electrical connections: 6mm
Voltage: 12/24/32V
Use in the electrical installation of passenger vehicles, trucks, agricultural and construction machinery, caravans, motor boats, etc. where the ability to cut off the power supply is needed.
Disconnection - With one simple flick of the wrist and the earth circuit is broken e.g.:
-before carrying out any type of repair,
-when the vehicles are parked for a long time,
-when charging the battery from the charger without removing it from the vehicle.
Application :
-The switch is used to quickly disconnect the power supply in vehicles.
-Can act as an anti-theft device or as a quick emergency power disconnection.
-Product also useful for various types of car rallies.
